Used in engineering transport vehicle, dangerous goods transport vehicles, logistics transportation, urban public transport vehicles, personal vehicles to get a number of different industry applications, such as rich practical experience allows you to rest assured, personalized service allows you to use more satisfied !

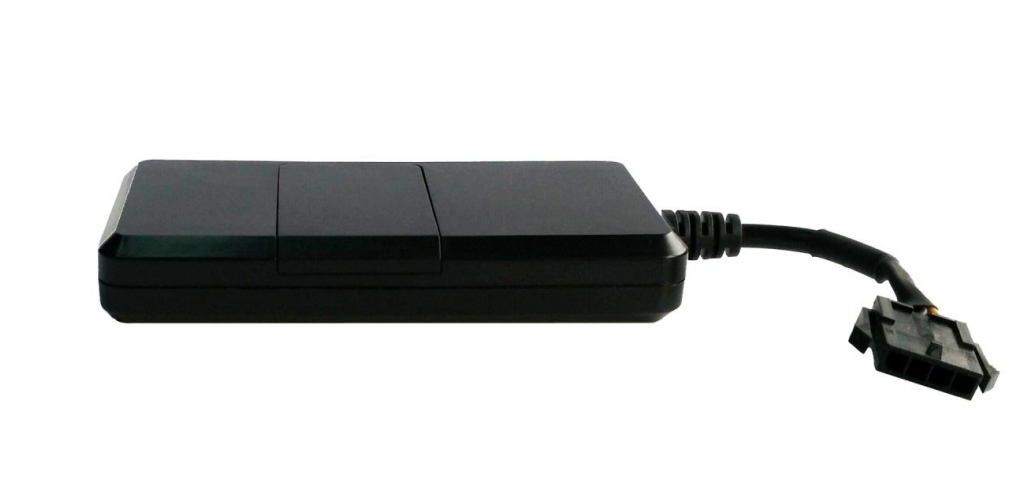

Send InquiryBY-M4 4G Vehicle GPS Tracking Device
Product Features | Specific description |
Operating Voltage | DC 9V~100V,Highest applicable to 6-cell single car battery with nominal 12V |
Working current | Average current<30mA(DC12V),Maximum current<100mA(DC12V) |
Battery protection | Anti-200V power supply reverse connection; main voltage detection; |
Built-in battery | 120mAH,3.7V,Lithium polymer battery |
Terminal volume | 82mm*23mm*13mm(length * width * height) |
Terminal weight | TBD |
Operating temperature | -20℃~70℃ |
storage temperature | -40℃~85℃ |
Relative humidity | 5%~95% |
Product Features | Specific description |
Working frequency | 4：GSM 850/900/1800/1900MHz |
Maximum transmit power | GSM850 Class4(2W) GSM900 Class4(2W) DCS1800 Class1(1W) PCS1900 Class1(1W) |
Receiver sensitivity | <-107dBm |
Operating temperature | -35℃～80℃ |
storage temperature | -45℃～90℃ |
Operating Voltage | 3.3V~4.6V（recommend4.0V） |
Power consumption | GPRS Class10 maximum：460mA；Shutdown current：47uA |
GPRS | GPRS Class 10,Embedded TCP/UDP/FTP/PPP protocol Maximum downlink transmission rate：85.6kbps Maximum uplink transmission rate：85.6kbps |
Certification Information | ROHS、FCC、CEModel Approval |
Basic Function :
Positioning Monitoring
Timed Monitoring
Blind Area Compensation
AGPS
ACC Detection
Low Pressure Alarm
Speeding alarm, low speed alarm
Abnormal alarm of positioning module
Mileage Statistics
Remote Settings
