Smart GPS Lock Build In 15,000mAh Rechargeable Lithium Battery

Name: Smart GPS Lock Build In 15,000mAh Rechargeable Lithium Battery
Brand: ShenZhen BaYao Technology Co.,Ltd
SKU: 62535833

This samrt Lock tracker combined with positioning, monitor and observe, the main applies to container, trucks and other transportation object location and tracking services

Send Inquiry

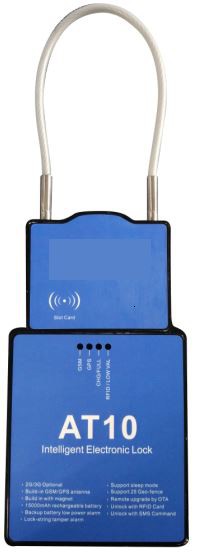

Smart GPS Lock Build in 15,000mAh Rechargeable Lithium Battery

1. Product Introduction

AT10 Lock tracker combined with positioning, monitor and observe, the main applies to container, trucks and other transportation object location and tracking services.

AT10 lock tracker fully supports the GPRS network data transmission function, GPRS platform can be combined with software to make it more widely used in large-scale cluster monitoring, transportation management and many other fields.

Product Features:

n Backup battery low power alarm.

n Build-in GSM/GPS antenna.

n Support GPS real-time tracking(platform support).

n Support GPRS network data transmission.

n Lock ON/OFF alarm.

n Lock-string tamper alarm.

n Rechargeable battery.

n Support sleep mode.

n Remote upgrade by OTA.

n Build in with magnet.

n Unlock with RFID card(max support 10 RFID card).

n Unlock with SMS command(with unlock password).

n Support 25 Geo-fence.

Note:

ü This product function based on GPRS network; need a SIM card which have GPRS data transmit and SMS functions.

ü SIM card is not include in the packing list, please prepare SIM card before you use this device.

ü Please only use the charger from the factory.

2. Packing List

No.	Name	Count
1	AT10 Lock device	1
2	Lock string wire	1
3	RFID card	Optional

3. Technical Parameters

Name	Parameters
GSM module frequency (2/3G optional)	2G: 850/900/1800/1900 MHz
GSM module frequency (2/3G optional)	3G: 900/2100MHz@UMTS 900/1800MHz@GSM
Color	Black
GSM module(optional)	UC15-E / M26 (QUECTEL)
GPS module	SKG1612R(Skylab)
Working Current	Around 120mA@3.7V battery
Sleep mode Current (No SCM model)	Around 40mA@3.7V battery
Sleep mode Current (SCM model)	Around 8mA@3.7V battery
SCM model	STM8
Back-up Battery	15,000mAh rechargeable lithium battery
Tracker size	195mmx114mmx37mm
Tracker weight	1.23KG
Working temperature (normal battery)	-30℃ - +60℃
Working temperature (High Temp battery)	-30℃ - +80℃
Moisture	5% - 95%
Locate Sensitivity	10m,CEP
Locate time	Hot start(average): <2s Cold start(average): <25s
GPS Sensitivity	-159dbm
GPS Frequently	L1,1575.42MHz
GPS Receiver	22 Channels
LED Indicator	Use blue/green/red/orange four color LED indicator to show the status of power/GPS/GSM/charger.
Blind area data	20,000 records

FAQ

1. Show offline in Software Platform

Check if the device LED indicator shows normal. If device is not beside you, use telephone to check. Call the SIM card telephone you inserted in device, and make sure the SIM card is working.

2. All the devices show offline in Software Platform

Check the software platform server part, if it works normal contact with your GSM network operator. If both server and GSM network have no problem, then contact us.

3. Device do not get correct position

First time get position will take longer time (around 1~2 min), please put the LED side face to sky with no cover to get position. If it takes long time and do not get correct location, please check if the device install position is correct and no metal shield above it.

4. Device do not get GSM network

Make sure the SIM card has money/enabled GPRS, and was correct installed, and make sure the device not in a GSM signal blind area (such as underground garage).
